When it comes to towing, having a reliable wiring connection between your vehicle and trailer is crucial. One of the most common and simplest wiring setups is the 4 pin trailer wiring diagram. This guide will help you understand the 4 pin trailer wiring system, ensuring you can connect your trailer lights safely and efficiently.

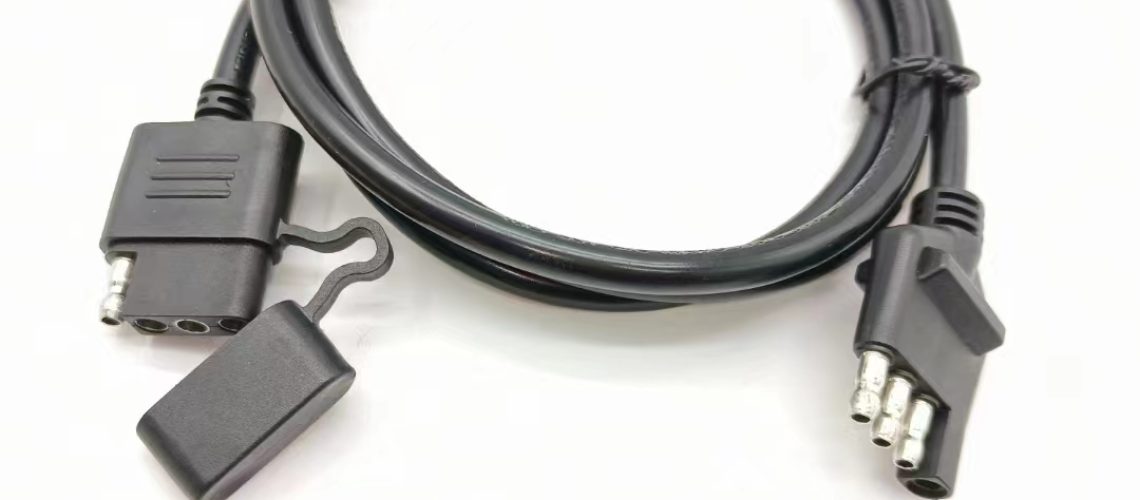

What is a 4 Pin Trailer Wiring Harness?
A 4 pin trailer wiring harness is a basic connector that provides power to the essential lights on a trailer: tail lights, brake lights, and turn signals. It is typically used for small trailers that do not require advanced lighting systems or auxiliary power.
Components of the 4 Pin Trailer Wiring
Here is a breakdown of the four wires typically found in a 4 pin trailer wiring harness:
- Ground (White): Ensures the entire trailer is grounded to the vehicle.
- Tail/Running Lights (Brown): Powers the tail lights and running lights.
- Left Turn/Brake Light (Yellow): Controls the left turn signal and brake light.
- Right Turn/Brake Light (Green): Controls the right turn signal and brake light.
Wiring Diagram
Here's a typical layout for a 4 pin trailer wiring diagram:
- White: Ground
- Brown: Tail/Running Lights
- Yellow: Left Turn/Brake Light
- Green: Right Turn/Brake Light
Installation Tips
- Safety First: Always disconnect the trailer from the towing vehicle before working on the wiring.
- Follow the Diagram: Use the wiring diagram as your guide to ensure each wire is connected correctly.
- Secure Connections: Use waterproof connectors and secure all wiring to avoid damage from movement and exposure to the elements.
- Test the System: Once installed, test each function to ensure everything works correctly before hitting the road.
Step-by-Step Installation Guide
- Gather Materials: You’ll need a 4 pin trailer wiring kit, wire strippers, electrical tape, and connectors.
- Strip Wires: Strip about half an inch of insulation from each wire on both the trailer and vehicle side.
- Connect Wires: Match the wire colors from the vehicle to the trailer harness:
- White to White (Ground)
- Brown to Brown (Tail/Running Lights)
- Yellow to Yellow (Left Turn/Brake Light)
- Green to Green (Right Turn/Brake Light)
- Secure Connections: Use waterproof connectors or solder the wires and cover with electrical tape to prevent corrosion.
- Ground the System: Attach the white ground wire to a clean, bare metal surface on the trailer frame.
- Test the Wiring: Connect the trailer to the vehicle and test the lights. Ensure the tail lights, brake lights, and turn signals are functioning correctly.
Troubleshooting Common Issues
If your trailer lights are not working correctly, check the following:
- Ground Connection: Ensure the ground wire is properly connected to a bare metal surface.
- Wiring Connections: Verify that all wiring connections are secure and free from corrosion.
- Bulbs: Check the trailer light bulbs to ensure they are not burnt out.
- Fuse: Inspect the vehicle’s fuse box for any blown fuses related to the trailer wiring.
Choosing the Right 4 Pin Trailer Wiring Harness
When selecting a 4 pin trailer wiring harness, it’s crucial to choose a product that meets industry standards for safety and reliability. At WiringLabs, we offer premium quality 4 Pin Trailer Wiring Harnesses designed for durability and ease of installation.
Check out our 4 Pin Trailer Wiring Harness product page to find the perfect solution for your towing needs!
Conclusion
Understanding and correctly installing a 4 pin trailer wiring harness is essential for safe and efficient towing. By following this guide and using the right components, you can ensure a reliable connection between your vehicle and trailer, enhancing your towing experience. If you have any questions or need assistance, feel free to contact us at WiringLabs.
